Road Force Motorcycle

When you see a trailer like this one, you understand what a motorcycle trailer ought to be. Low and sleek and striking. It just commands attention. Beyond impressive styling, the Road Force V-Front motorcycle trailer appreciates the need to protect and pamper your ride: wheel chocks, floor/wall tie-downs, and Torflex rubber torsion axles for a smooth journey. In many ways the interior is as impressive as the exterior - Rubber RTP Flooring, white vinyl sidewall/ceiling and plenty of rugged ATP treadplate for added durability. Built to last and designed to impress. Other popular options for a custom ride include aluminum wheels, multi-color exterior and helmet cabinets.

Find nearest dealer

Features

Custom Tribal Graphics

Smooth Aluminum Fenders

Chrome Nose

  • D.O.T. Safety Chains with Hooks
  • One-Piece Aluminum Roof
  • 16" OC Vertical Posts
  • Torflex Rubber Torsion Axles with E-Z Lube Hubs
  • .030 Prefinished Aluminum Exterior (12 colors)
  • Extruded Aluminum Bottom Trim (Mill Finished)
  • Oval LED Tail Lights
  • Top Wind Jack with Sand Pad
  • 24" ATP Stoneguard
  • 4-year Limited Warranty
  • Drop-Down Stabilizer Jacks
  • Electric Brakes with Breakaway Kit
  • 15" Radial Tires
  • Silver Spoke Wheels (E-Coated)
  • Flow-Thru Sidewall Vents
  • .030 Aluminum Exterior Bonded (No Screws)

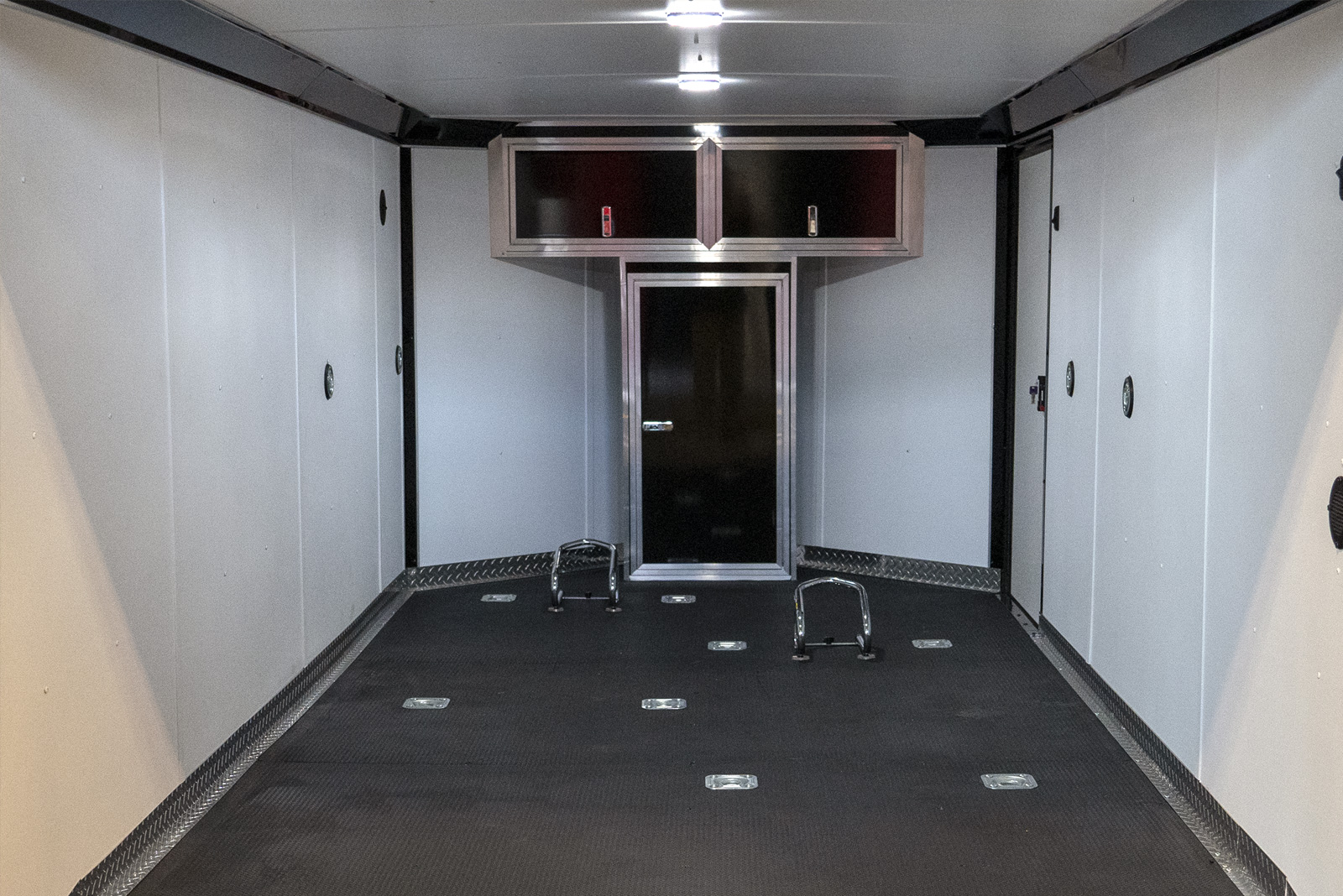

  • White Vinyl Interior Sidewall Liner and Ceiling Liner

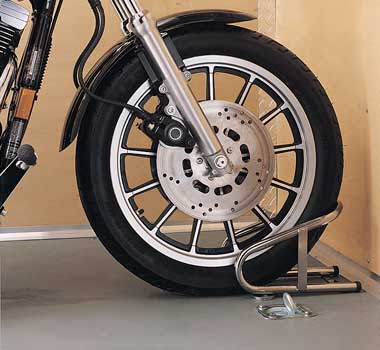

  • Removable Chrome Wheel Chock(s)
  • ATP Covered Rear Ramp Door
  • ATP Covered 16" Ramp Extension
  • Chrome Rear Corners & Rear Header
  • 32" Pre-Framed Side Door with Flush Lock

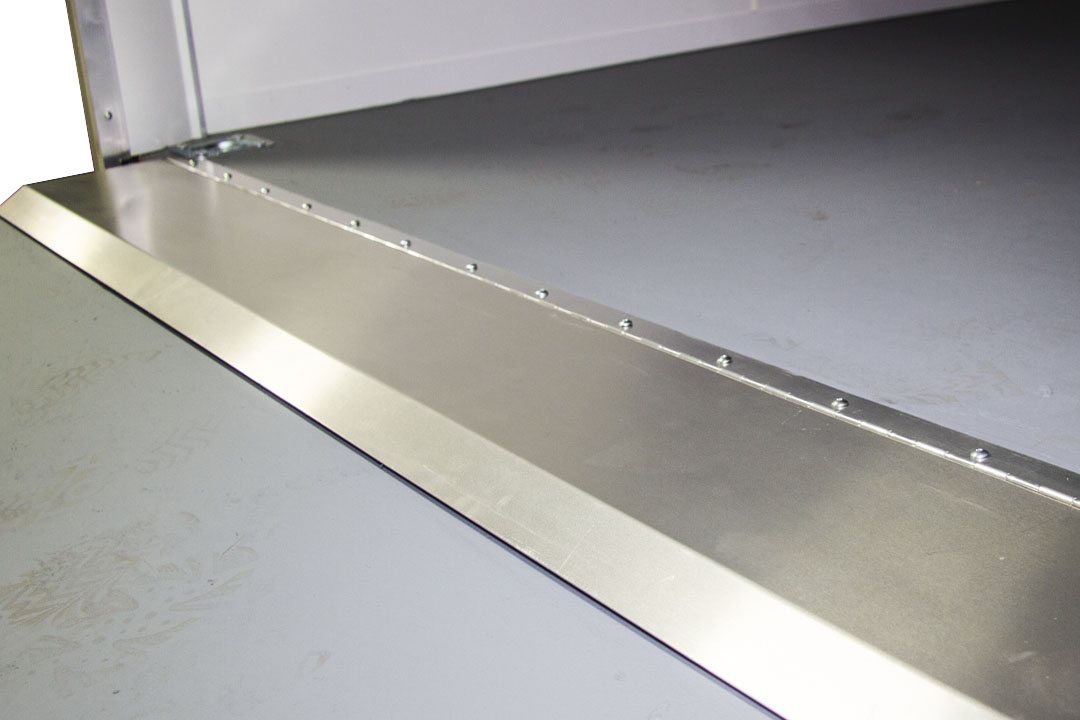

  • .080 Ramp Door Hinge Cover
  • Chrome Bottom Panels
  • 32" Recessed Beavertail
  • 3/4 Inch DryMax High-Performance Interior Decking
  • Rubber RTP Flooring
  • Chrome Wheel Trim Ring

Standard Features, Specifications and Available Options subject to change without notice.

Specifications


MODEL RFVMC7X122 RFVMC7X142 RFVMC7X162
NUMBER OF MOTORCYCLES 2 2 2
BODY WIDTH 7'0" 7'0" 7'0"
BODY LENGTH 13'7" 15'7" 17'7"
OVERALL LENGTH 15'8" 17'8" 19'8"
OVERALL WIDTH 8'6" 8'6" 8'6"
OVERALL HEIGHT 6'9" 6'9" 6'9"
INTERIOR LENGTH 13'3" 15'3" 17'3"
INTERIOR WIDTH 6'8" 6'8" 6'8"
INTERIOR HEIGHT 5'3" 5'3" 5'3"
PLATFORM HEIGHT 13" 13" 13"
BRAKES No No No
SUSPENSION Torflex Torflex Torflex
TIRE SIZE 15" 15" 15"
LOAD RANGE C C C
HITCH BALL SIZE 2-5/16" 2-5/16" 2-5/16"
HITCH TO TOP OF BALL 17" 17" 17"
HITCH WEIGHT (LB.) 10-15% 10-15% 10-15%
CURB WEIGHT (LB.) 2340 2460 2750
GVWR (LB.) 7000 7000 7000
AVG. PAYLOAD CAPACITY 4660 4540 4250
RAMP DOOR: WIDTH 75" 75" 75"
RAMP DOOR: HEIGHT 61" 61" 61"
SIDE DOOR: WIDTH 32" 32" 32"
SIDE DOOR: HEIGHT 54" 54" 54"
TUBE MAIN RAILS: 2"x3" 2"x3" 2"x3"
12V END CONNECTOR 7-way 7-way 7-way

DOWNLOAD SPECIFICATIONS PDF

Standard Features, Specifications and Available Options subject to change without notice.

Options

Aluminum Helmet Cabinets

Aluminum Tread Plate Floor

ATP Floor Runner

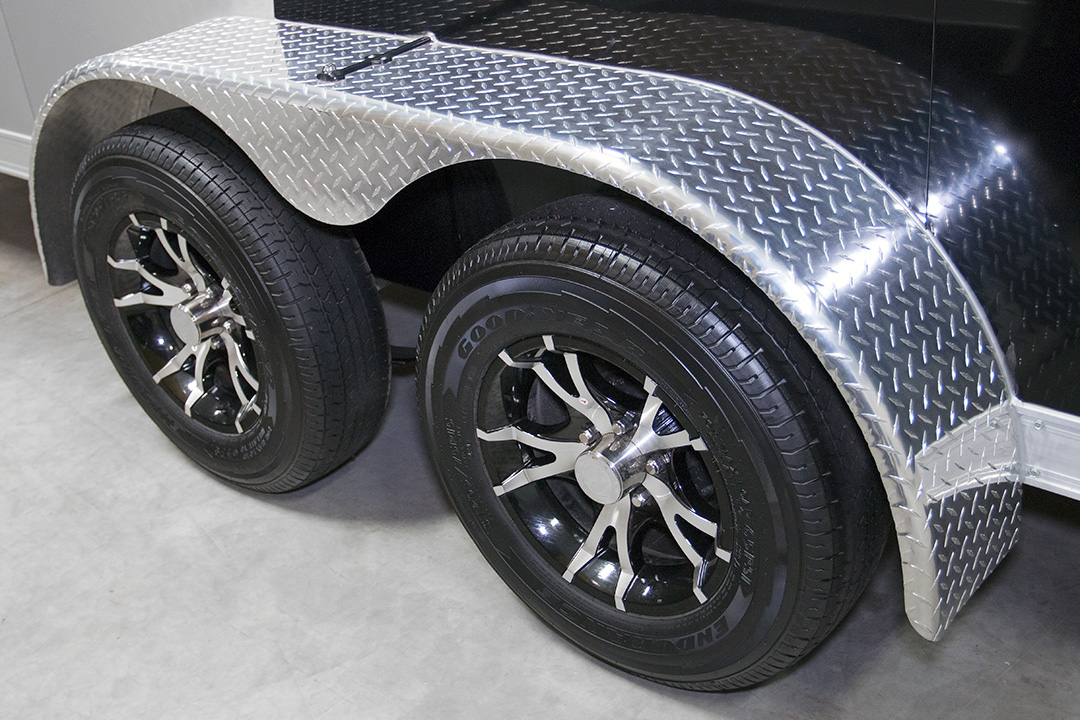

Black Star Aluminum Wheels

E-Track

Fluorescent Lighting

Gray/Black Coin Rubber Floor Covering

Multi-Color Exterior

Roof Mount A/C

14" x 14" Non-Powered Roof Vent

Roof Vent Cover

Scorpion Spray-On Protective Liner

Wall-Mounted Rope Rings



Standard Features, Specifications and Available Options subject to change without notice.

Colors

Victory Red

Charcoal Gray

Black

Polar White

Indigo Blue

Champagne Beige

Silverfrost

Pewter

Arctic Green

Orange

Yellow

Matte Black
